GPCA™ Carabiner Key Module Add-on
Turn your Carabiner into a key organizer. The Key Module Add-on retrofits a key module onto a GPCA™ Carabiner PRO X, PRO or LITE and holds up to 3 keys silently inside the frame. It uses the same thread and mounting design as the built-in module on the Carabiner PRO X KEY, so the two are interchangeable.

Why add the Key Module
- Up to 3 keys, silent: your keys sit inside the carabiner frame instead of jingling on a ring.
- Retrofit: gives your PRO X, PRO or LITE the same key setup as the Carabiner PRO X KEY.
- 420 steel or Grade 5 titanium: pick the module that suits your carry.
- Spacers and rubber washer included in the KEY Module Full Set for a quiet, snug fit.
- Installs with the Torx tool you already have: the T8 bit of the Torx T6 + T8 tool included with your Carabiner.
- Lifetime warranty.


Which carabiners it fits
| Carabiner PRO X | Yes |
|---|---|
| Carabiner PRO | Yes |
| Carabiner LITE | Yes |
| Carabiner PRO X KEY | Has the module built in. Add the Screw Set for Key Module as a spare. |
| Carabiner X GRIP | No |
| Carabiner Loop PRO / Loop LITE | No |

How to install
- Remove the 2 top screws from your Carabiner with the Torx T8, then push out the female screws. Store this screw set for future use.
- Insert the key module parts: make sure the large end of the spring faces you. Put the parts on the left side, then insert the tube spacer. Double-check the parts.
- Unscrew the right side of the module, press and hold your keys (with the spacers between them), place the key guard on top and screw the cap on.
- Fold the key back, unscrew the left side, rotate the key guard down and screw the cap on.
- Tighten both sides with the Torx T8 tool. Make sure they are nice and tight; apply a little low-strength Loctite if needed.

Choose your option
- KEY Module Full Set: the key module for your PRO X, PRO or LITE, in 420 steel or Grade 5 titanium, with spacers and a rubber washer.

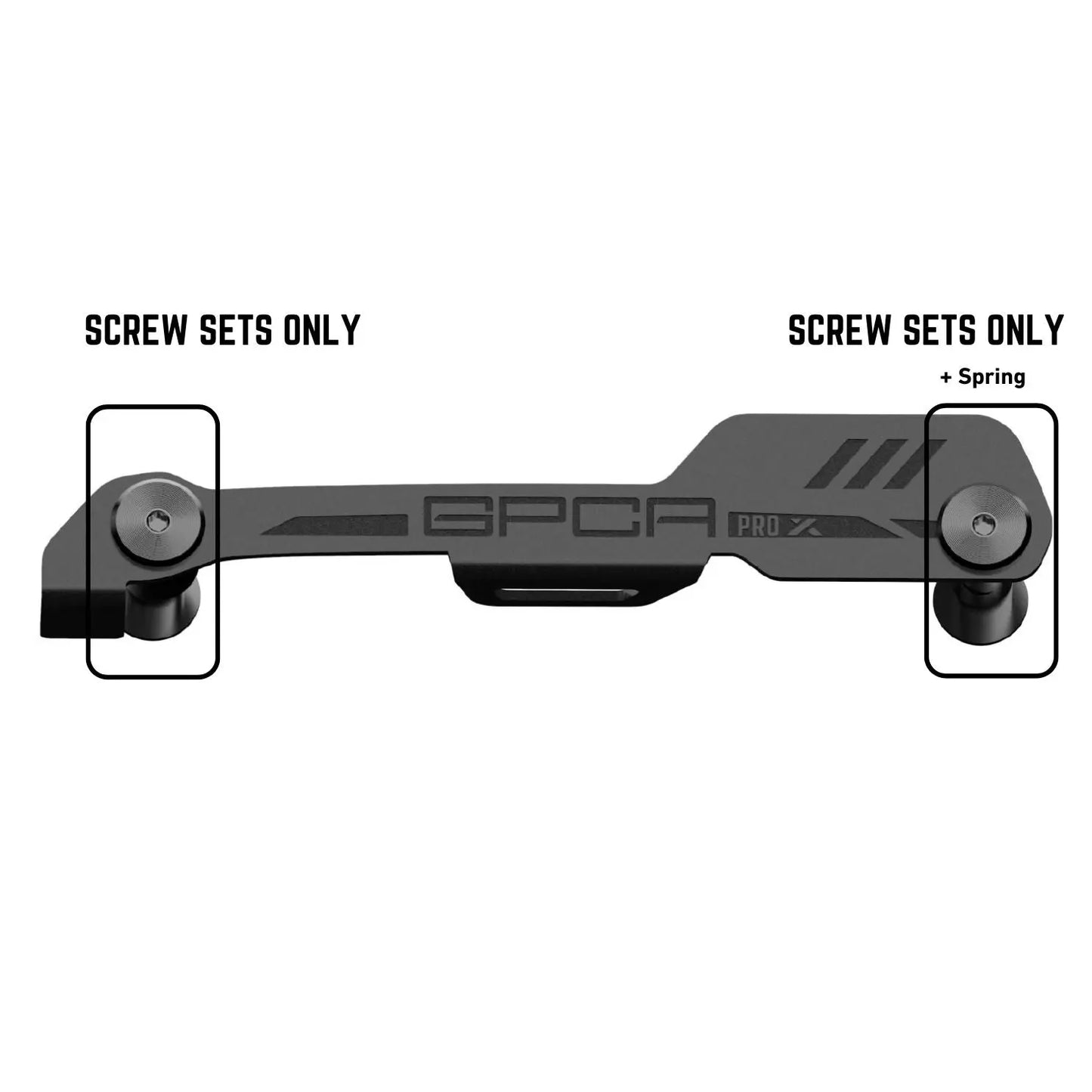

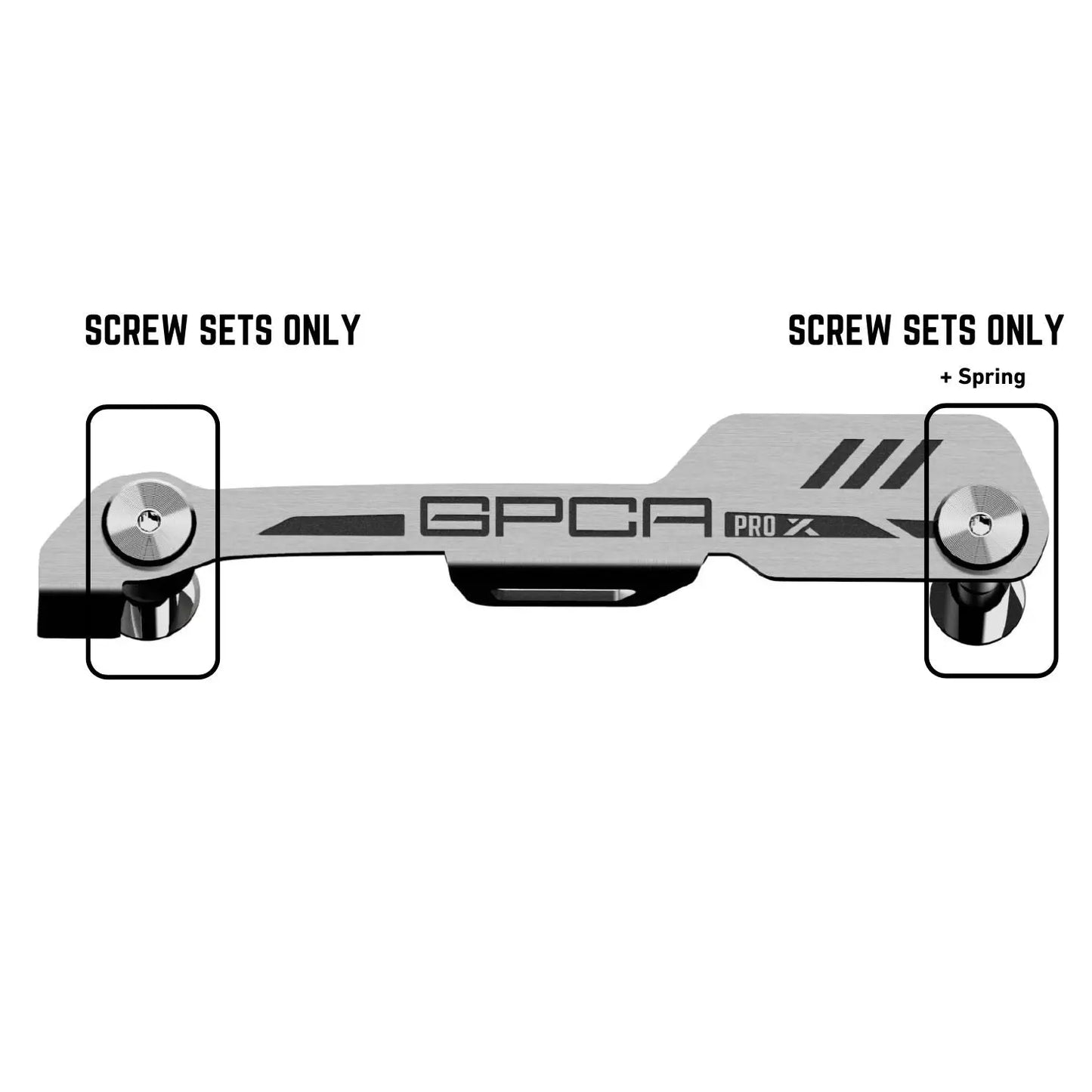

- Screw Set for Key Module: 2 spare screw sets for the key module, one with the spring.

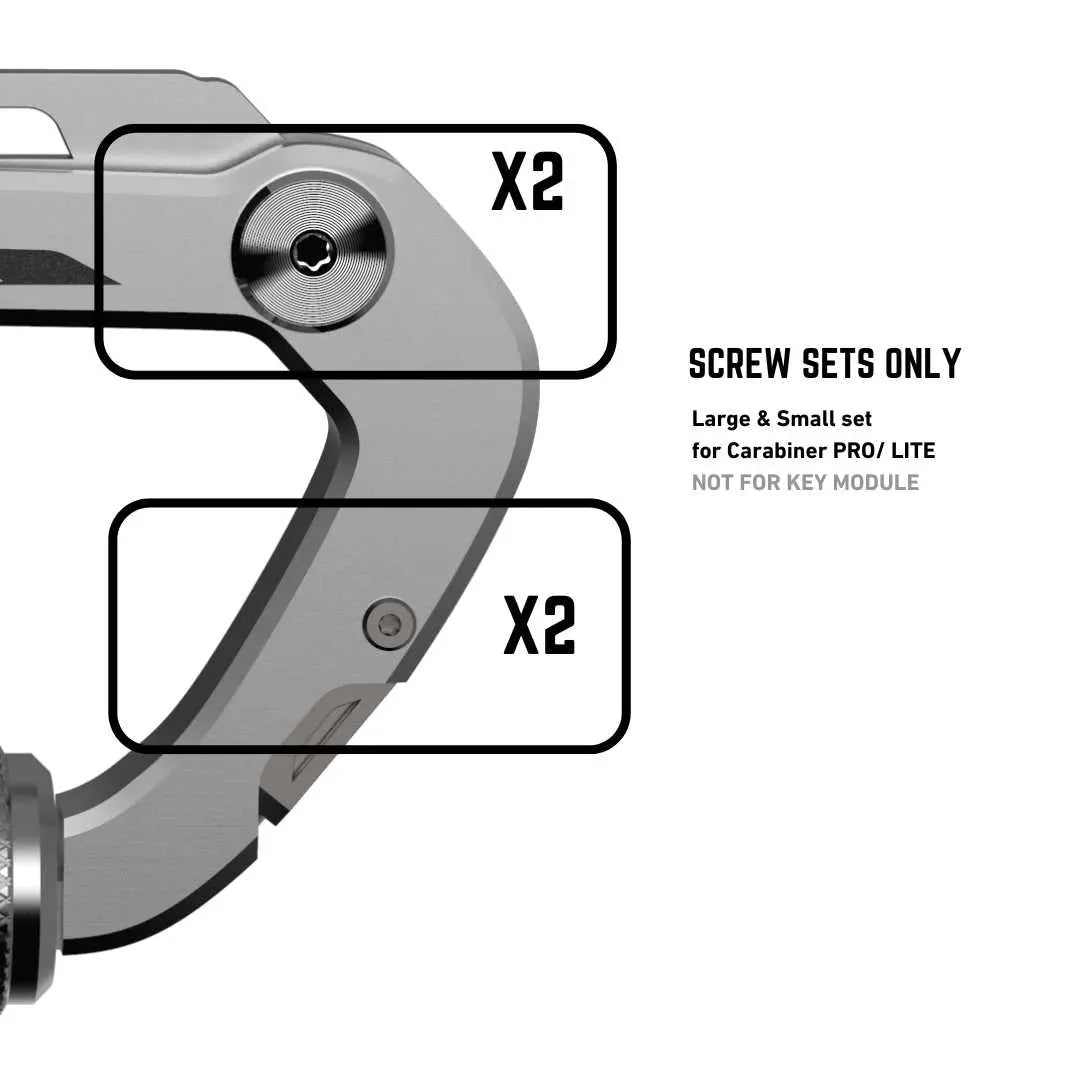

- Screw Set on Carabiner: replacement large and small screws (2 of each) for the Carabiner PRO X, PRO X KEY, PRO and LITE. Not for the key module.



Quiet keys, every day
Load your keys with the included spacers between them. If they feel loose, add the included rubber washer next to the spring for more compression, and use a little low-strength Loctite on the screw once the tension is right.

Product Specs
| Type | Retrofit key module for GPCA™ Carabiners |
|---|---|
| Holds | Up to 3 keys, silently inside the frame |
| Fits | Carabiner PRO X, PRO and LITE (not the X GRIP or the Loop line) |
| Material | 420 steel or Grade 5 titanium |
| Full Set includes | Key module, spacers and rubber washer |
| Options | KEY Module Full Set; Screw Set for Key Module (2 sets, one with spring); Screw Set on Carabiner (2 large + 2 small) |
| Tool | Torx T8 (Torx T6 + T8 tool included with your Carabiner; also sold separately) |
| Warranty | Lifetime warranty |
